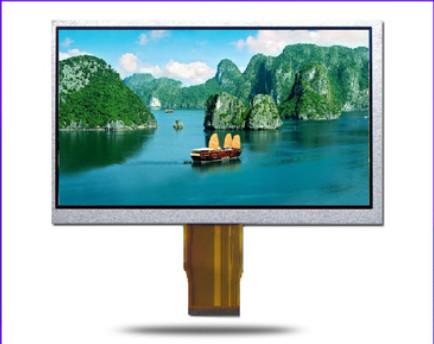

7'' HDMI 800*480 1024*600 TFT Display for Raspberry Pi with Touchscreen
1. 800xRGBx480dots OR 1024xRGBX600dots
2. TFT Display
3. 0.96-10.1 inch LCD panel & module are available
4. Support OEM & ODM service
5. More than 10years LCD experience
| Item | Description |
| Model Name | R070WSV002 |
| Product type | LCD Module |
| Screen Size | 7" |
| Aspect Ratio | 16:9 |
| Resolution | 1024X3(RGB)X600 |
| Module Size(mm) | 164X100 |
| Active Area(mm) | 154X86 |
| Viewing Angle (Tpy.)θT/θB/θL/θR | 50/70/70/70 |
| Luminance(nits) | 200 |
| Contrast Ratio | 500 |
| Response Time(ms) | 25 |
| Interface | 50pin FPC,Parallel 24bit RGB |
| Operation Temperature( ºC) | -20º C~70ºC |
| Storage Temperature (ºC) | -30º C~80ºC |
Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Precautions For Use of LCD Modules
Handling Precautions
1) The display panel is made of glass. Do not subject it to a mechanical shock by dropping it from a high place, etc.
2) If the display panel is damaged and the liquid crystal substance inside it leaks out, be sure not to get any in your mouth, if the substance comes into contact with your skin or clothes, promptly wash it off using soap and water.
3) Do not apply excessive force to the display surface or the adjoining areas since this may cause the color tone to vary.
4) The polarizer covering the display surface of the LCD module is soft and easily scratched. Handle this polarizer carefully.
5) If the display surface is contaminated, breathe on the surface and gently wipe it with a soft dry cloth. If still not completely clear, moisten cloth with one of the following solvents:
－Isopropyl alcohol
－Ethyl alcohol
Solvents other than those mentioned above may damage the polarizer. Especially, do not use the following:
－Water
－Ketone
－Aromatic solvents
6) Do not attempt to disassemble the LCD Module.
7) If the logic circuit power is off, do not apply the input signals.
8) To prevent destruction of the elements by static electricity, be careful to maintain an optimum work environment.
9) Be sure to ground the body when handling the LCD Modules.
10) Tools required for assembly, such as soldering irons, must be properly ground.
11) To reduce the amount of static electricity generated, do not conduct assembly and other work under dry conditions.
12) The LCD Module is coated with a film to protect the display surface. Be care when peeling off this protective film since static electricity may be generated.
13) Storage precautions
14) When storing the LCD modules, avoid exposure to direct sunlight or to the light of fluorescent lamps.
15) The LCD modules should be stored under the storage temperature range. If the LCD modules will be stored for a long time, the recommend condition is:
16) The LCD modules should be stored in the room without acid, alkali and harmful gas.
Transportation Precautions
The LCD modules should be no falling and violent shocking during transportation, and also should avoid excessive press, water, damp and sunshine.
Our Advantage
1) Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2) Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3) Payment Terms: T/T, Western Union.
4) Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5) Service: Best after-sales service to ensure satisfaction from customers.
6) Warranty: Usually, product warranty for one year.
7) Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
FAQ
Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
Q: What about the production time?
A: The LCD products need 5-6 weeks to be made after receive deposit.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q:Do you give any discount ?
A: I'll surely try my best to help you get those by the best price and good service at the same time.
